Single Channel DC Electronic Load Battery Capacity Meter 400W 40A B3617
Single Channel DC Electronic Load Battery Capacity Meter 400W 40A B3617
【Load mode】Low CC, CV, CW, CR four basic load modes, low input or reverse connection protection and alarm, with multiple load online synchronous operation
【High precision and high stability】Optimized heat dissipation structure, high power density and digital control mode, higher precision, good stability, RS485, 232 communication interface, MODBUS protocol.
【Protection function】With over voltage, over current, power supply, over temperature protection function, low voltage remote measurement function;
【Automatic test function】With external I / O trigger signal, PASS, FAIL command, powerful interface friendly PC software support.
【Multi-test function】Low 10 KHZ dynamic test function; low battery capacity test function; low battery internal resistance test function; low overcurrent protection point/time test function; low fan PWM control, power switch power supply 110VAC switching use.
Product Description
Features:

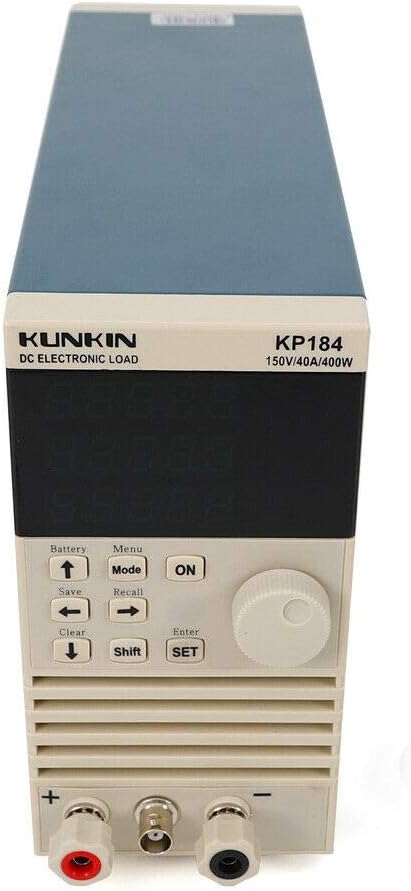

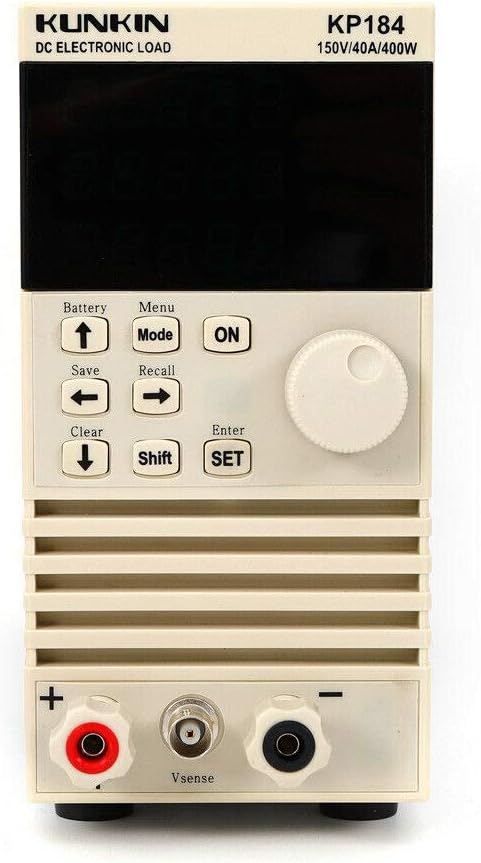

Model: KP184
Power plug: US plug
Power input:
Voltage: AC 110V±10%, 50±2Hz
Power consumption: < 20 W
Load input:
Load voltage: DC 1 -150 V
Load current: 0-40A
Load power: 0-400W
measurement accuracy:
Current: ±0.05%+5mA
Voltage: ±0.05%+5mV
control precision:
Current: ±0.05%+5mA
Voltage: ±0.05%+5mV

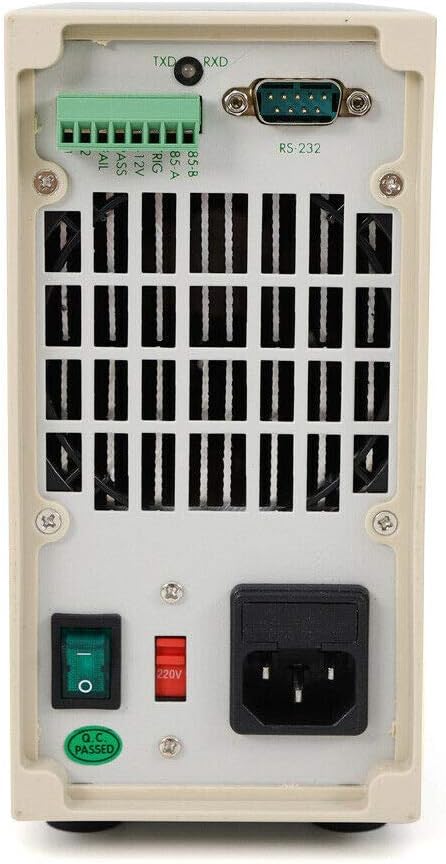

Communication method: RS232/RS485
Protection:
Overvoltage (OV): greater than 152 V off load
Over temperature (OT): 85 ° C
Over power (OP): single channel 410W
Power input fuse: 0.5A
Ambient temperature range
0～500C
Ambient humidity range: 10~90% RH
DC input terminal to chassis withstand voltage: ±500VDC
DC input to chassis insulation resistance: >20MΩ, 500VDC
AC input to chassis insulation resistance: >20MΩ, 500VDC
Dimensions (mm) L × B × H: about 300 × 90 × 190
Packing size: 38.5*16*27cm
Weight: 4.5kg

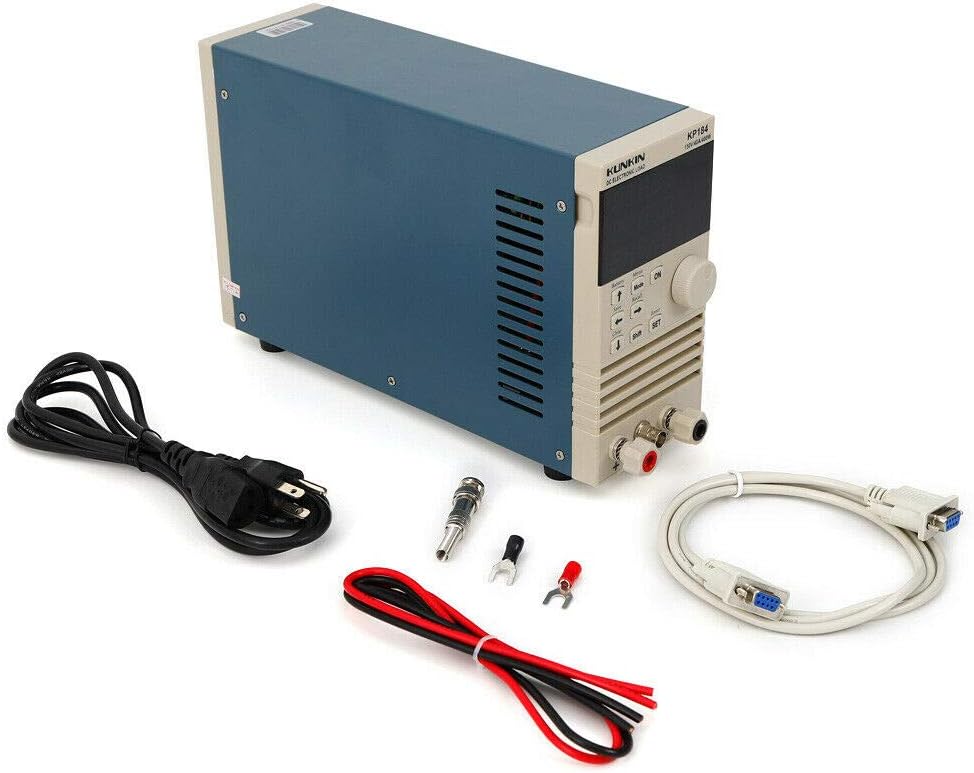

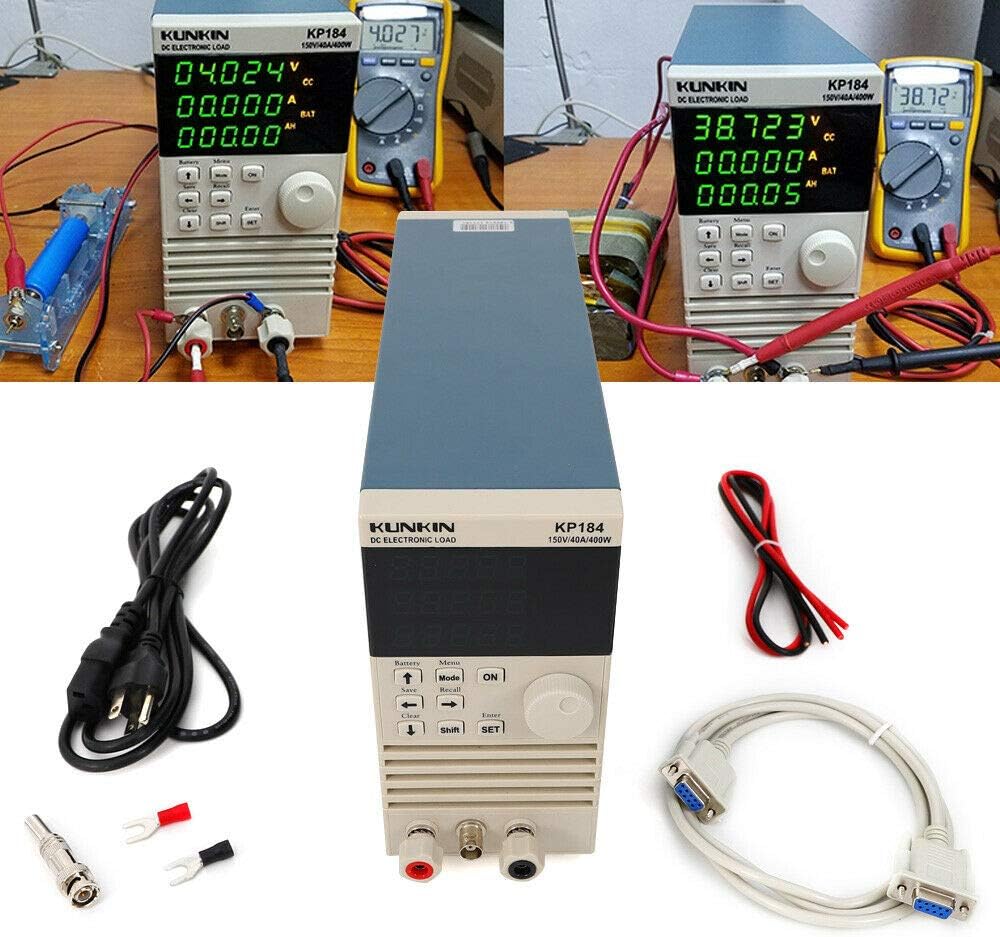

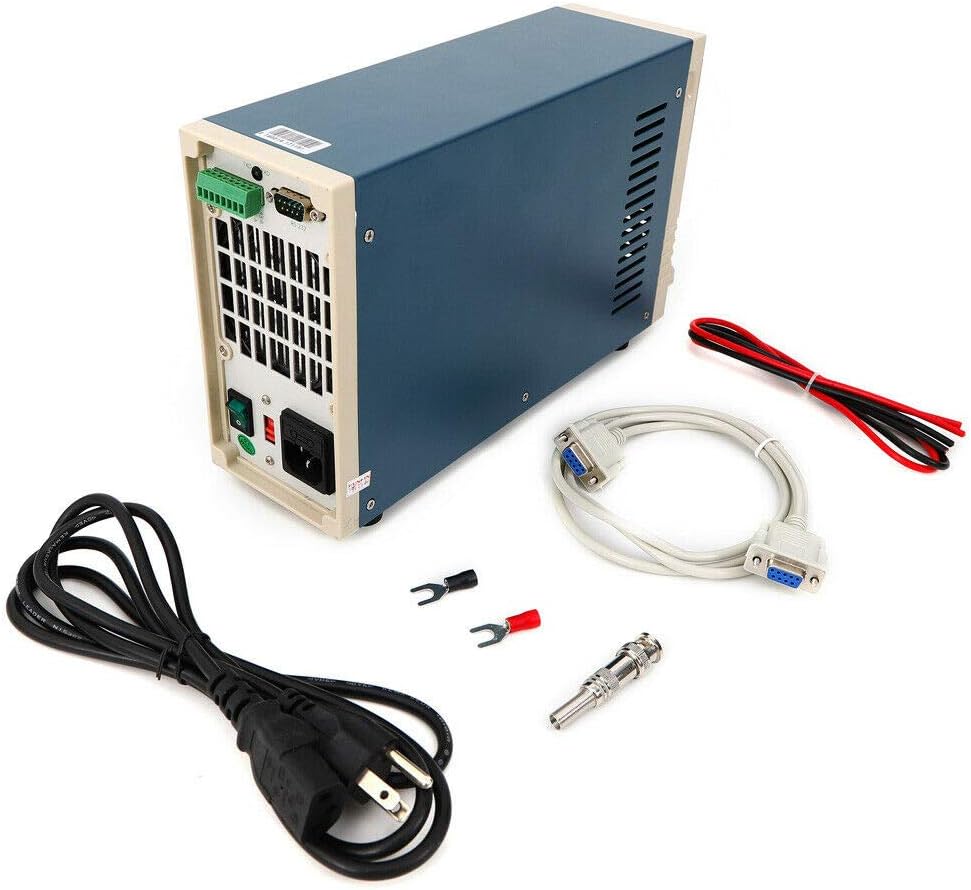

The package includes:
1 x KP184 DC Electronic Load

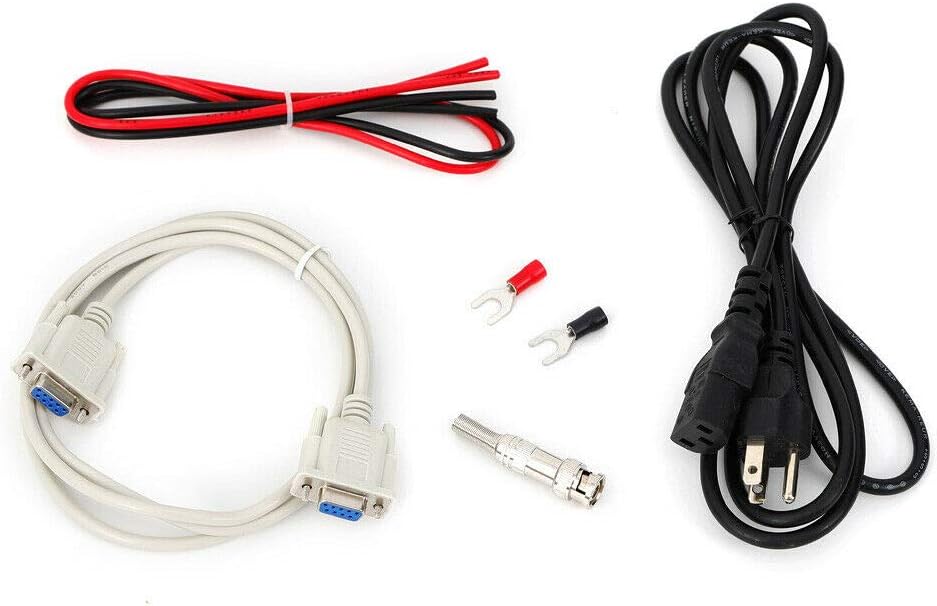

1 x plug
1 x remote compensation terminal
2 x positive and negative test terminal
1 x 232 communication cable
2 x test cable
1 x user manual
